720L/Min PLC Control Diving Air Compressor Cylinder Filling Station For Sale
1、Product name
HY-X720Z High Pressure Air Compressor
2、Product Picture
3、Main parameters
l Model:HC-X720Z
l Work pressure:33Mpa Mpa(330bar)
l Air Displacement (inhalation state):720L/min L/min
l Type:X-type layout-four-cylinder four-stage reciprocating piston compression
l Drive: 380V/50Hz/15kw
l Lubrication method:Oil pump lubrication (food grade lubricant 750-H2)
l Cooling method:Air cooling
l Control method:PLC system automatic shutdown, automatic sewage discharge, temperature control system, phase sequence protection function, emergency stop function, low noise, low temperature, low speed, oil filter, touch screen
l Clean air:1 air filtration, 3 oil-water separation, 1 air purification
l Safety devices:There are safety valves at all levels, automatic shutdown function, and the whole case structure
l Packing size (length×width×height):98×145×175cm
l Weight:690kg
l Inflation speed:It takes about 3 minutes to fill a 6-liter bottle with 30Mpa
6、Main application

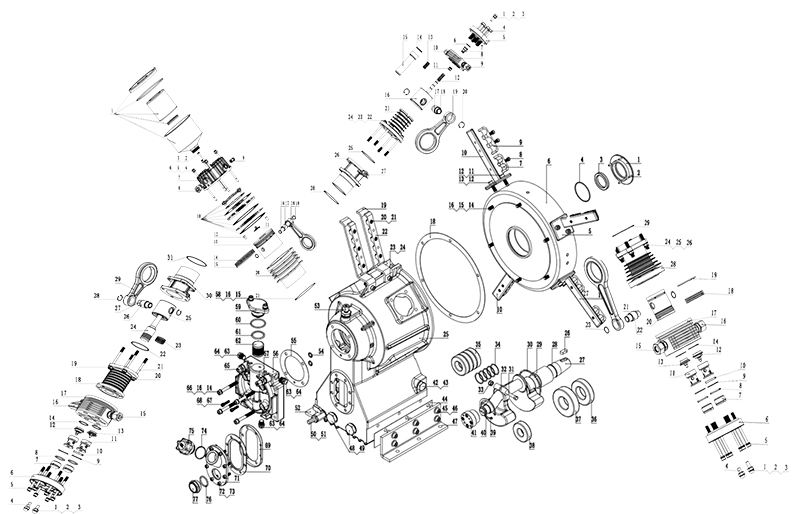

HC-X720 Assembly Drawing-Standard Assembly Process
This product adopts four-cylinder four-stage compression, oil pump lubrication,
inter-stage safety valve and deep filtration system. HC-X720 can provide safe compressed air for any industry that requires high-pressure pure air source, and provide
safe compressed air that meets the requirements of human breathing. This product is designed, produced and tested and accepted in accordance with the requirements of GB/T 12929-2008 "
Marine High Pressure Piston Air Compressor"; the air quality meets the EN12021 international breathing compressor breathing standard; HC-X720 is a kind of air compression equipment,
which will be free 1 kg (1bar/0.1Mpa) of air in the state is compressed to a high-pressure gas of 330 kg (330bar/33Mpa) gauge pressure step by step. After the air flows through the separator
and filter in the unit, the air contained in it is removed The oil and impurities in the high-pressure air can filter the fine particles (PM2.5) in the inhaled air to a safety value of less than 10 micrograms,
which meets the standards set by the World Health Organization, making the exhaust gas clean and tasteless. The personnel provide highly purified, clean, odorless, safe and reliable compressed breathing air.
Fire-fighting breathing application: equipped in the gas supply stations of the fire brigade or various fire-fighting vehicles to provide emergency gas supply at the scene of a fire or in the rescue and relief process, so that the majority of firefighters will be exposed to heavy smoke, poisonous gas, steam or lack of oxygen. In this environment, you can breathe highly purified, clean, odorless, safe and reliable compressed air, thus ensuring that fire extinguishers can safely and effectively carry out fire fighting, rescue, disaster relief, and rescue.
Diving breathing applications: diving clubs, diving enthusiasts, marine breeding, sea rescue, ship equipment, underground operations, fishery fishing, aquaculture, sunken object salvage, underwater engineering, water parks, shipbuilding and other industries, providing high Purified, clean, odorless, safe and reliable compressed breathing air. In an environment that cannot meet the requirements of the human body for normal breathing, the air is filled into a high-pressure gas cylinder for human breathing.
