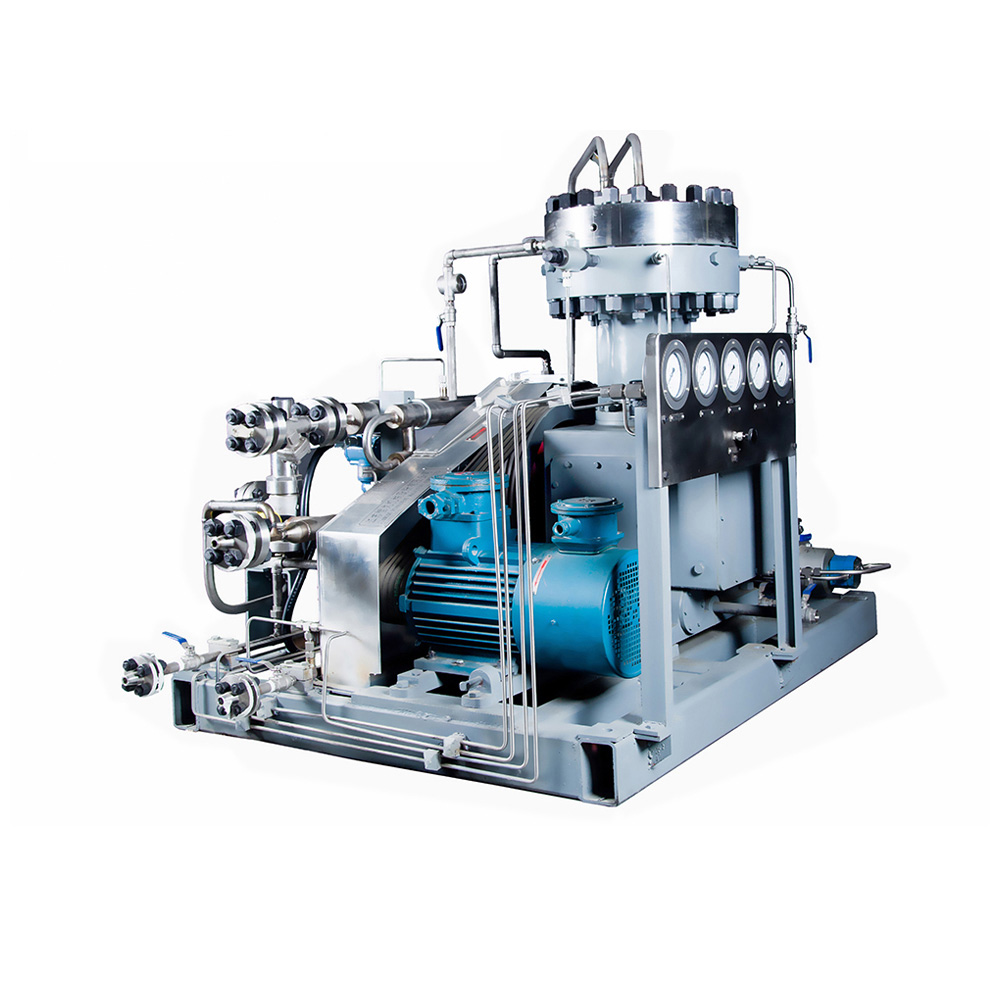

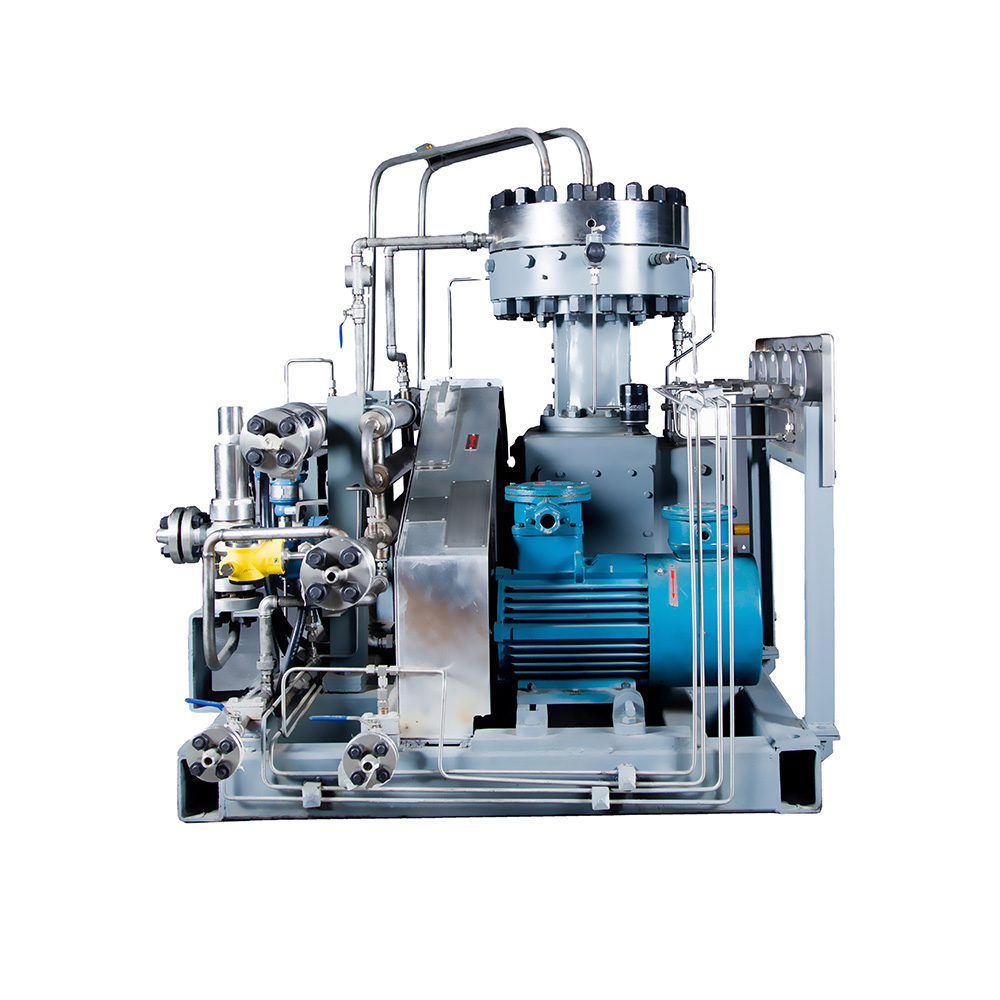

GZ-type high pressure 99.999% hydrogen H2 diaphragm compressor for H2 station
| Daily hydrogenation capacity (kg/d) | Model |
Inlet Pressure (MPa) |
Outlet Pressure (MPa) |
Flow Rate (Nm3/h) |
Motor Power (kw) |
| 100 | GZ-100/125-450 | 5.0~20 | 45 | 100 | 15 |
The GZ type hydrogen diaphragm compressor is suitable for hydrogen refueling stations, hydrogen filling and other application scenarios. It can ensure that the purity of hydrogen can reach 99.999%. At the same time, due to the characteristic that its compressed medium does not come into contact with any lubricant, it is particularly suitable for explosive gases such as hydrogen.
The GZ type diaphragm compressor is a non-standard customized compressor product in the industry. The GZ type diaphragm compressor is a single-cylinder first-stage diaphragm compressor. The GZ series compressor covers different piston forces from small to large, so the price of the GZ type product fluctuates greatly due to different configurations, ranging from tens of thousands to hundreds of thousands. It can be customized according to different customer usage parameters, requirements and environments.
The diaphragm compressor is one of many types of compressors. It is named because it has a special diaphragm that separates the compressed gas medium from the outside world (hydraulic oil, piston). The diaphragm compressor can also be referred to as a membrane compressor. The diaphragm compressor is composed of a cylinder block, a cylinder head, a crankshaft connecting rod, a diaphragm, an oil circuit, an air circuit, a water cooling system and a motor drive. Our company can provide a variety of cooling methods for all diaphragm compressor series products: air cooling, water cooling and forced cooling.
