High Purity 45MPA Hydrogen Compressor Manufacturer
Our company specialize in producing various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Hydrogen compressor , Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirement
High pressure hydrogen compressors have important application potential in the field of hydrogen energy. Hydrogen energy is a clean and renewable form of energy, but the storage and transportation of hydrogen is one of the key issues, and high-pressure hydrogen compressors can solve this problem. By compressing hydrogen to high pressure, it can be stored in a smaller space and transported more efficiently to the desired location. Therefore, high-pressure hydrogen compressors provide important technical support for the development of hydrogen energy.
Secondly, high-pressure hydrogen compressors also have potential in the field of hydrogen fuel cell vehicles. Hydrogen fuel cell vehicles are one of the future trends in automotive development, with advantages such as zero emissions, high range, and short refueling time. High pressure hydrogen compressors can compress hydrogen to high pressure, thereby achieving higher hydrogen storage density.
Hydrogen is widely used in industries such as chemical, electronic, and metallurgical industries. There is a great demand for hydrogen in these fields, and high-pressure hydrogen compressors can improve the storage density and transportation efficiency of hydrogen.
In addition, high-pressure hydrogen compressors can also be applied in the field of energy storage. With the rapid development of renewable energy, energy storage has become one of the important ways to solve the volatility problem of renewable energy. Hydrogen energy storage is one of the important energy storage methods. High pressure hydrogen compressors can store hydrogen gas in hydrogen storage tanks and release it when needed, promoting the utilization of renewable energy and the stability of energy systems.

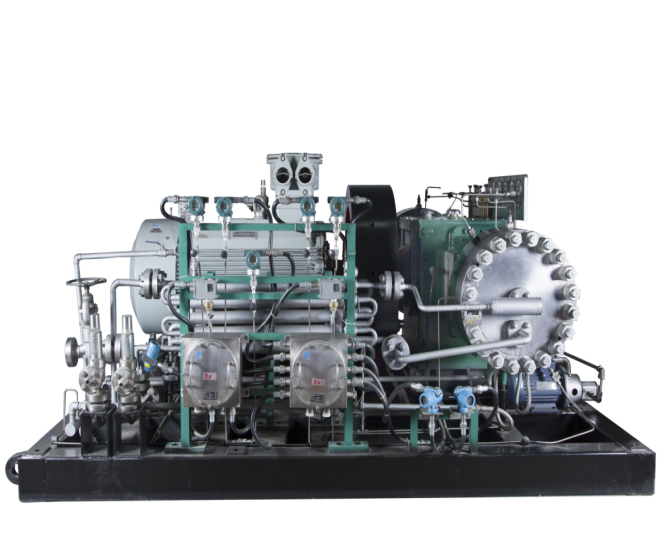

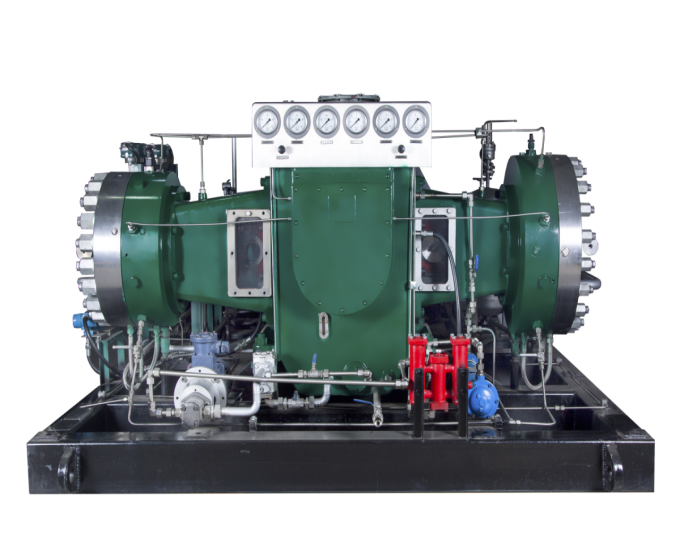

45MPa Hydrogen diaphragm compressor for hydrogen filling station Specfication:
| No | capacity （Kg/d） |
Model | Inlet pressure （MPa） |
Outlet pressure （MPa） |
Flow (Nm3/h) |
Motor power (KW) |
| 1 | 100 | GZ-100/125-450 | 5.0~20 | 45 | 100 | 15 |
| 2 | 200 | GZ-200/125-450 | 5.0~20 | 45 | 200 | 30 |
| 3 | 300 | GZ-350/125-450 | 5.0~20 | 45 | 350 | 37 |
| 4 | 500 | GD-500/125-450 | 5.0~20 | 45 | 500 | 55 |
| 5 | 1000 | GD-1000/125-450 | 5.0~20 | 45 | 1000 | 110 |
| No | Model | Inlet pressure （MPa） |
Outlet pressure （MPa） |
Flow (Nm3/h) |
Motor power (KW) |
| 1 | GD-100/15-220 | 1.5 | 22 | 100 | 37 |
| 2 | GD-150/15-450 | 1.5 | 45 | 150 | 45 |
| 3 | GD-220/15-450 | 1.5 | 45 | 220 | 75 |
| 4 | GD-240/15-450 | 1.5 | 45 | 240 | 90 |
| 5 | GD-350/15-450 | 1.5 | 45 | 350 | 132 |
| 6 | GD-620/15-450 | 1.5 | 45 | 620 | 185 |
| No | capacity （Kg/d） |
Model | Inlet pressure （MPa） |
Outlet pressure （MPa） |
Flow (Nm3/h) |
Motor power (KW) |
| 1 | 200 | GZ-200/200-870 | 20 | 87 | 200 | 30 |
Customized is accepted , Pls provide the following information to us :
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas ?
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____℃
5.Outlet pressure：____bar(g)
6.Outlet temperature:____℃
7.Installation location: _____indoor or outdoor?
8.Location ambient temperature: ____℃
9.Power supply: _V/ _Hz/ _3Ph?
10.Cooling method for gas: air cooling or water cooing?
Wide variety and types of diaphragm compressor can be manufactured by our company such as hydrogen compressor , nitrogen compressor , helium compressor , natural gas compressor and etc .
Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .
FAQ ：
Q1.How about your after-sales service?
A: Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.
Q2.What's payment term?
A: T/T, L/C, D/P, Western Union, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.
Q3 ： How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.
